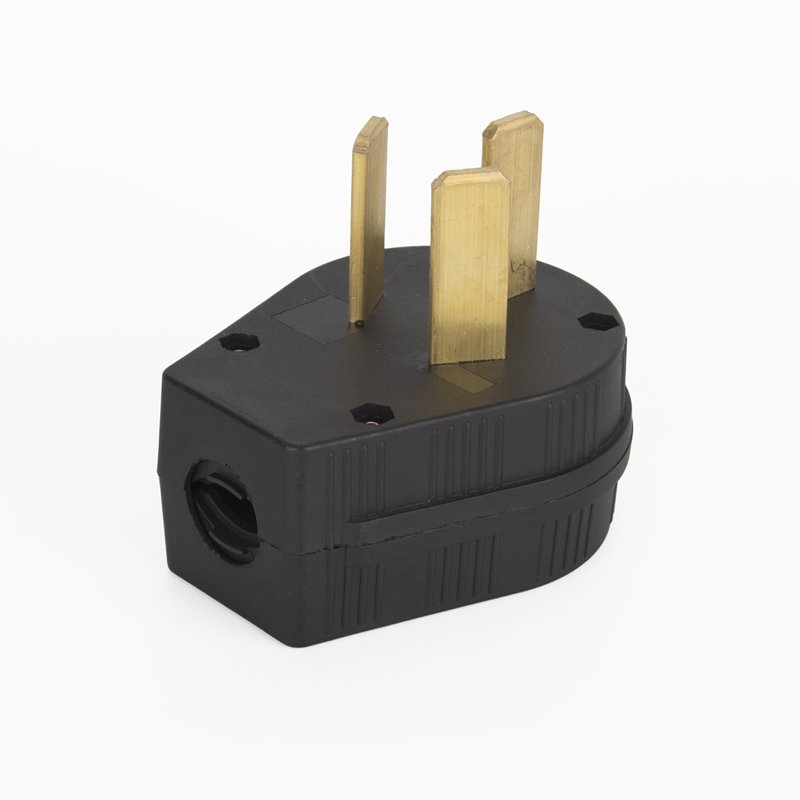

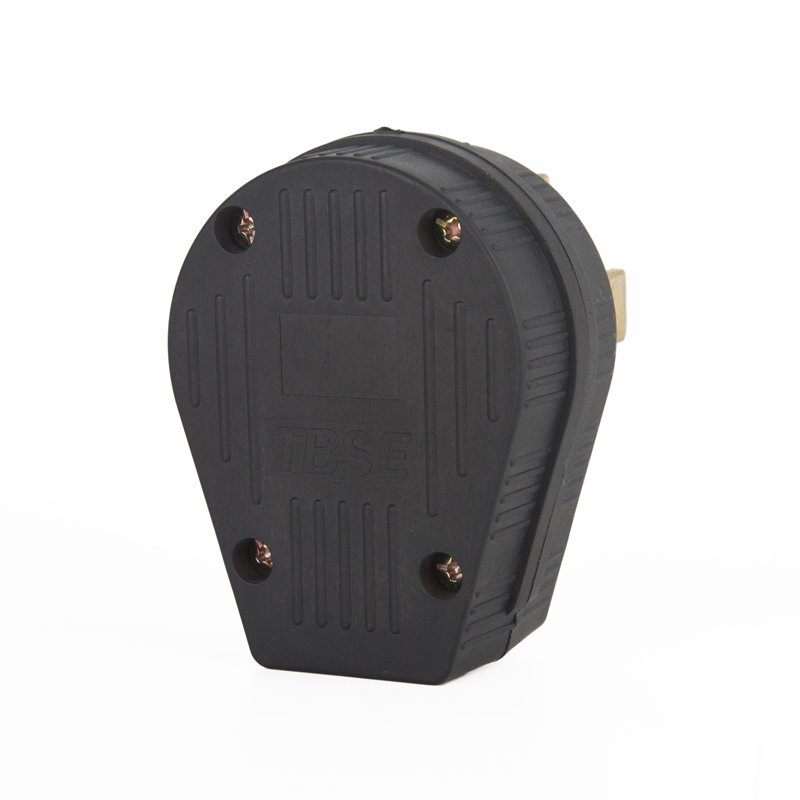

NEMA 10-50P 50 Amps 125/250 Volts Plug

NEMA 10-50P 50 Amps 125/250 Volts AC 3-Poles 3-Wires 3-Prongs, Straight Blade Angle Replacement Male Plug for Clothes Dryers and Kitchen Ranges, Industrial and Commercial Grade, UL cUL Listed

NEMA Configuration	NEMA 10-50P
Ampere	50 Amps
Voltage	125/250 Volts
Blades	Solid Brass
Pole/Wire/Grounding	3-Poles, 3-Wires, Non-Grounding
Wiring	W-neutral, X-hot, Y-hot
Suggested AWG	#8/3, #6/3,
Matching Receptacle	NEMA 10-50R
Color	Black or Customzied
Packaging	1pc/box, 100pcs/carton
Certificate	UL, cUL
Transportation Mode	Sea, Airfreight or Courier

Facebook Twitter LinkedIn WhatsApp Skype

Inquiry

Add to Car

DETAIL

NEMA Configuration: NEMA 10-50P 50 Amps 125/250 Volts AC 3-Prongs straight blade male replacement plug
Easy Wire Connection: The plug is easy for wire connection to build an extension cord. An instruction sheet will be attached to the inner box for users to do wire connections easily. Fastening screws inside the plug ensures the wire be connected securely and firmly
Sturdy Design: Shell is made of impact-resistant nylon with flame retardant UL94-V0, and blades are made of 100% solid brass to ensure maximum conductivity
Wide Application: Good option as a replacement plug for a broken or damaged 30 amps plug for kitchen ranges and clothes dryers.
