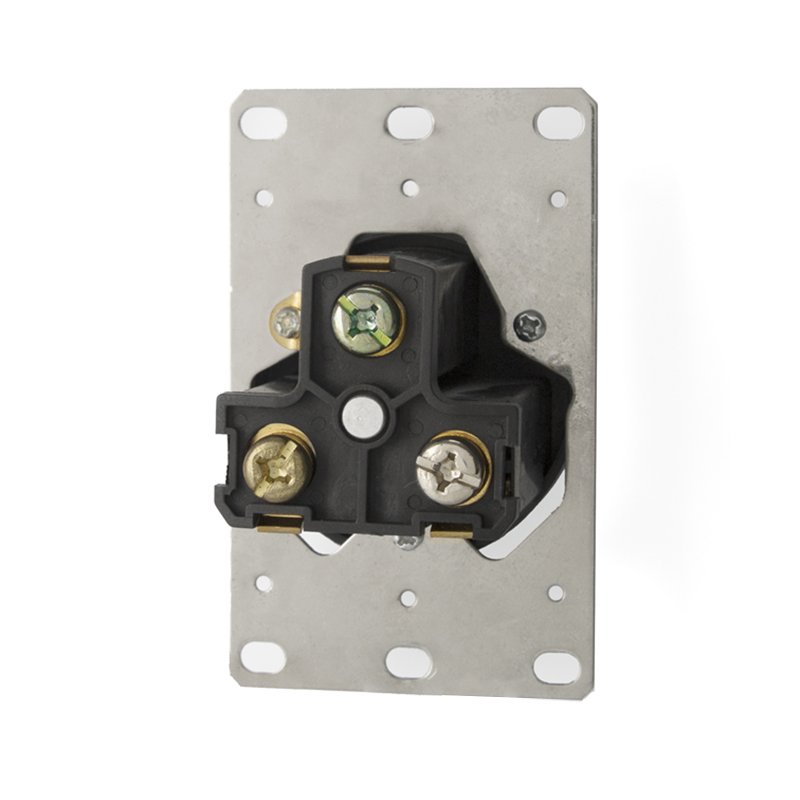

NEMA 6-50R 50 Amps 250 Volts Receptacle

NEMA 6-50R 50 Amps 250 Volts AC 2-Poles 3-Wires 3-Prongs, Flush-mounting Panel Mounted straight blade female receptacle, Industrial and Commercial Grade

NEMA Configuration	NEMA 6-50R
Ampere	50 Amps
Voltage	250 Volts
Contacts	Solid Brass
Pole/Wire/Grounding	2-Poles, 3-Wires, Grounding
Wiring	grounding, hot, hot
Suggested AWG	#8/3, #6/3
Matching Plug	NEMA 6-50P
Color	Black or Customzied
Packaging	1pc/box, 100pcs/carton
Certificate	None
Transportation Mode	Sea, Airfreight or Courier
Wire entry direction	Wire entry from side

Facebook Twitter LinkedIn WhatsApp Skype

Inquiry

Add to Car

DETAIL

NEMA Configuration: NEMA 6-50R 50 Amps 250 Volts AC 3-Prongs straight blade female receptacle
Easy Wire Connection: The receptacle is easy for wire connection. An instruction sheet will be attached to the inner box for users to do wire connections easily. Fastening screws at all four corners make the unit very sturdy
Sturdy Design: Housing is made of impact-resistant nylon with flame retardant UL94-V0, and contacts are made of 100% solid brass to ensure maximum conductivity
Wide Application: Good option as a replacement receptacle for a broken or damaged 50 amps receptacle on welder machine or other 220V tools/machines, electric heater, plasma cutter, air compressor
